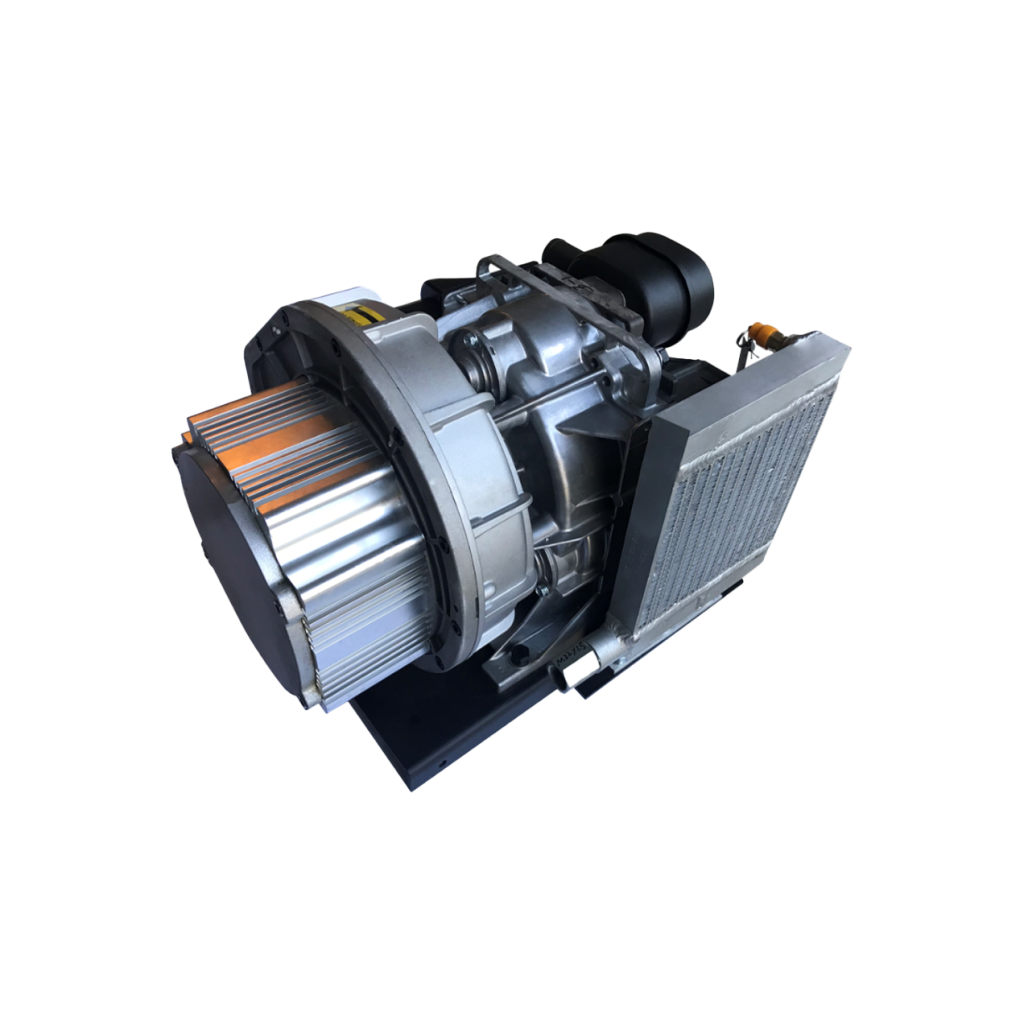

3.7kW Medium Voltage Electric Scroll Air Compressor (eAC3.7MV-01)
In Stock
This product is not available for online purchase.
Please email us to place an order.
Please email us to place an order.
Proven in thousands of commercial EVs and HEVs
- Highly Efficient
- Permanent Magnet Motor
- Oil Less Operation
- Integral Air Cooler
- Available 600V Inverter
- Compact Design
- Very Low Noise
- Meets Conventional Truck & Bus Requirements
- Extremely Low Maintenance
CSI Terms and Conditions of Sale:
Read Here
Product details
General specs
- Model #: eAC3.7MV-01
- Motor Type: 3.7kW Highly Efficient PM
- Voltage: 220VAC
- Air Compressor Type: Oil Less Scroll
- Air Compressor CFM @ PSI: 10.6 CFM 0.3M3/min@ 116 PSI (0.8MPa)
- Rated/Peak Pressure: 116/170 psi
- Ambient Temperature: -40°C to 55°C
- Weight: 80 lbs (36.29 kg)
- Dimensions: L: 17.7" × W: 14.5" × H: 14" (L: 450mm × W: 368mm × H: 356mm)
