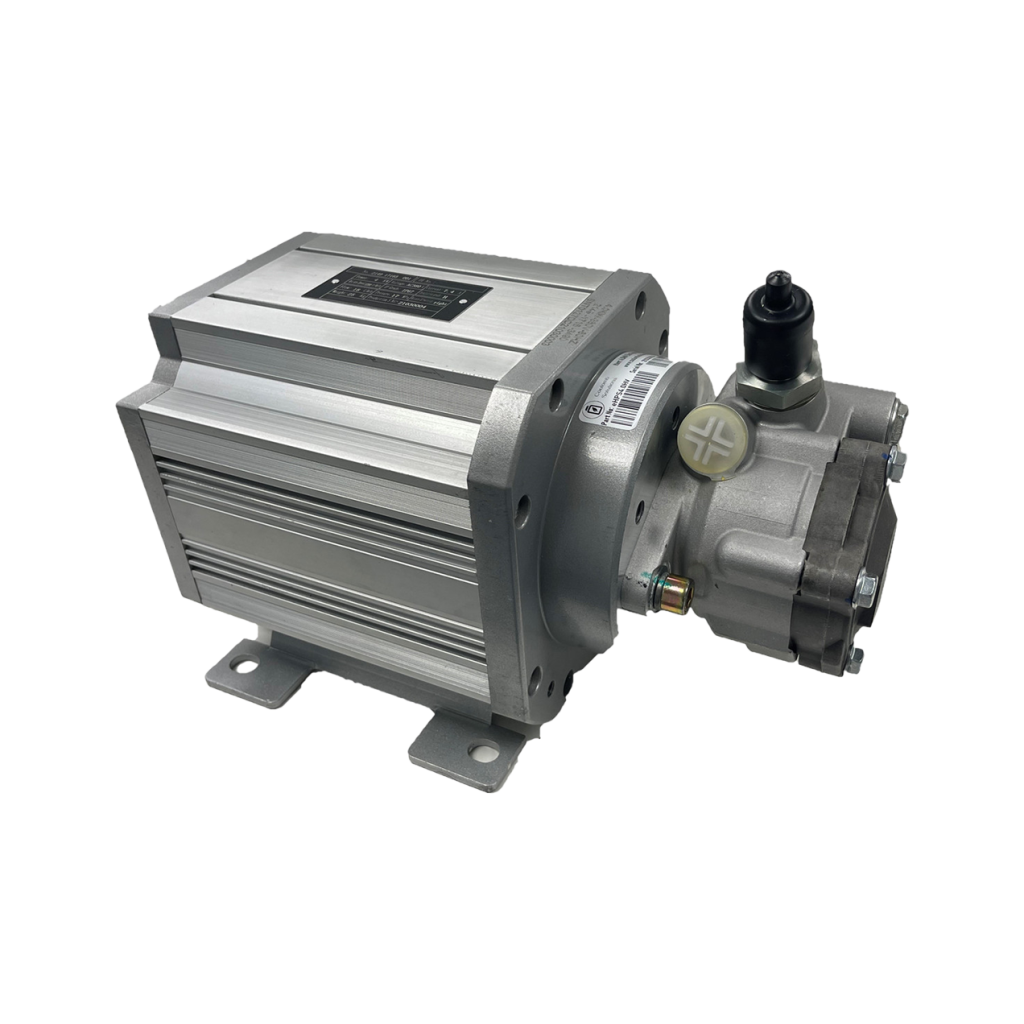

4.0kW Electric Steering Pump (eHPS4.0HV)
In Stock
This product is not available for online purchase.
Please email us to place an order.
Please email us to place an order.
Proven in thousands of commercial EVs and HEVs
- Highly Efficient
- Permanent Magnet Motor
- Reservoir Included
- Optional matched 5.5kw 600v
Inverter (eAD5.5HV)
- Compact Design
- Very Low Noise
- Meets Conventional Truck & Bus Requirements
- Extremely Low Maintenance
Download Brochure
Please log in to access technical files.
CSI Terms and Conditions of Sale:
Read Here
Product details
General specs
- Model #: eHPS4.0HV
- Motor Type: 4.0kW Highly Efficient PM
- Inverter Voltage: 500-750 VDC
- Inverter Control: CAN 2B
- Rated Flow at Pressure: 4.0 gpm (15lpm) at 2393 psi (16.5MPa) continuous
- Peak Flow/Pressure: 4.7 gpm/2538psi (17.8 lpm/17.5MPa)
- Ambient Temperature: -40°C to 85°C
- Environmental Protection: IP67
- Weight: 55 lbs (24.95 kg)
- Dimensions: L: 13.7" × W: 7.9" × H: 8.5" (L: 348mm × W: 201mm × H: 216mm)
