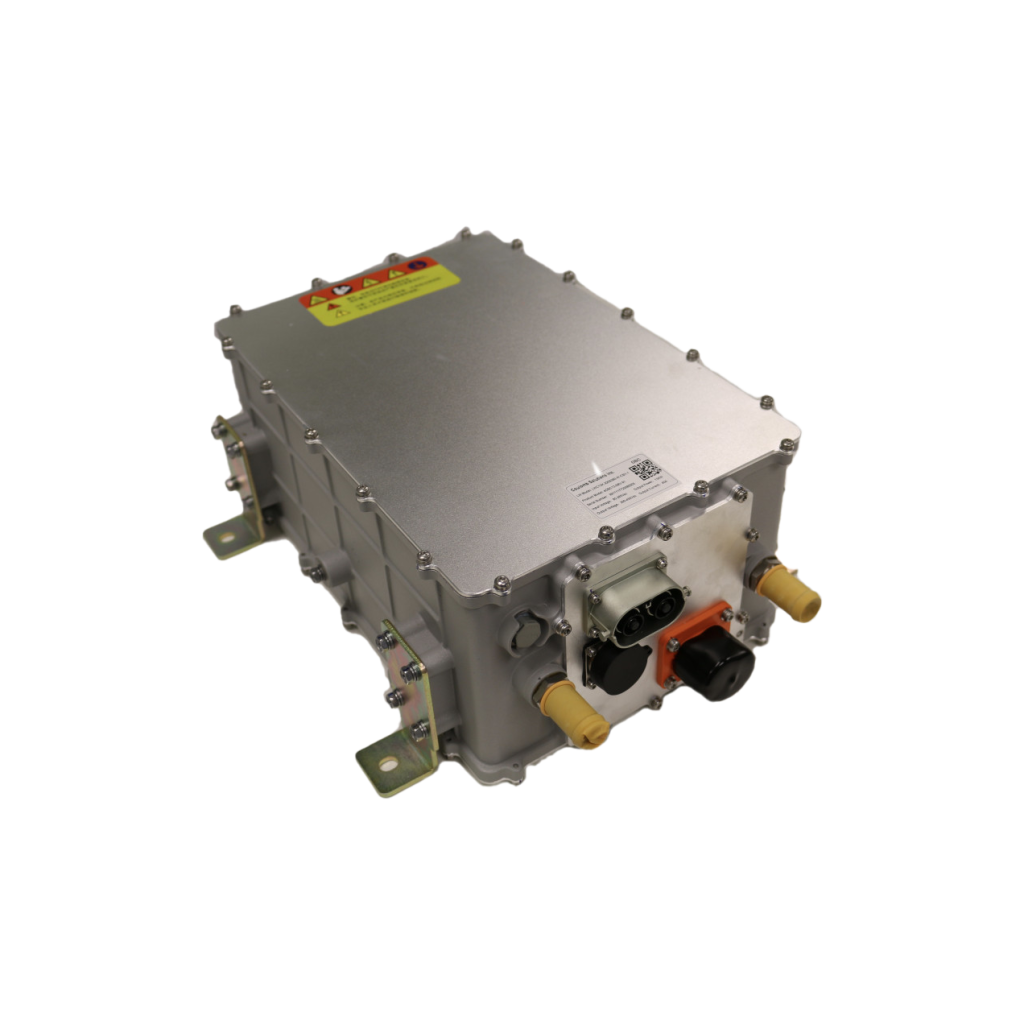

13.0 kW Medium Voltage On-board Charger (eOBC13.0MV-01)
In Stock
This product is not available for online purchase.
Please email us to place an order.
Please email us to place an order.
Something extra about the product goes here
- 13.0kW
- 250V-450V Output
- Highly Efficient
- CAN Controlled
- 85-265VAC 1 Phase AC Input
- Compact Design
- Liquid Cooled
- Meets Conventional Truck &
Bus Requirements - Standard SAE J1772 Protocol
Download Brochure
Please log in to access technical files.
CSI Terms and Conditions of Sale:
Read Here
Product details
General specs
- Model #: eOBC13.0MV-01
- Rated Power: 13.0KW Output
- Input Voltage Range: 85-265 VAC 1 Phase, 45-65 Hz
- Control Voltage: 9-36 VDC
- Control Current: 4.0A
- Output Voltage Range: 250-450 VDC
- Output Current: 40.0A
- Cooling: Liquid Cooled Water Glycol
- Working Ambient Temperature: -40°C ~ +60°C
- Environmental Protection: IP67
- Weight: 48 lbs (21.77 kg)
- Dimensions: L: 14.7" × W: 9.9" × H: 6.5" (L: 373mm × W: 251mm × H: 165mm)
