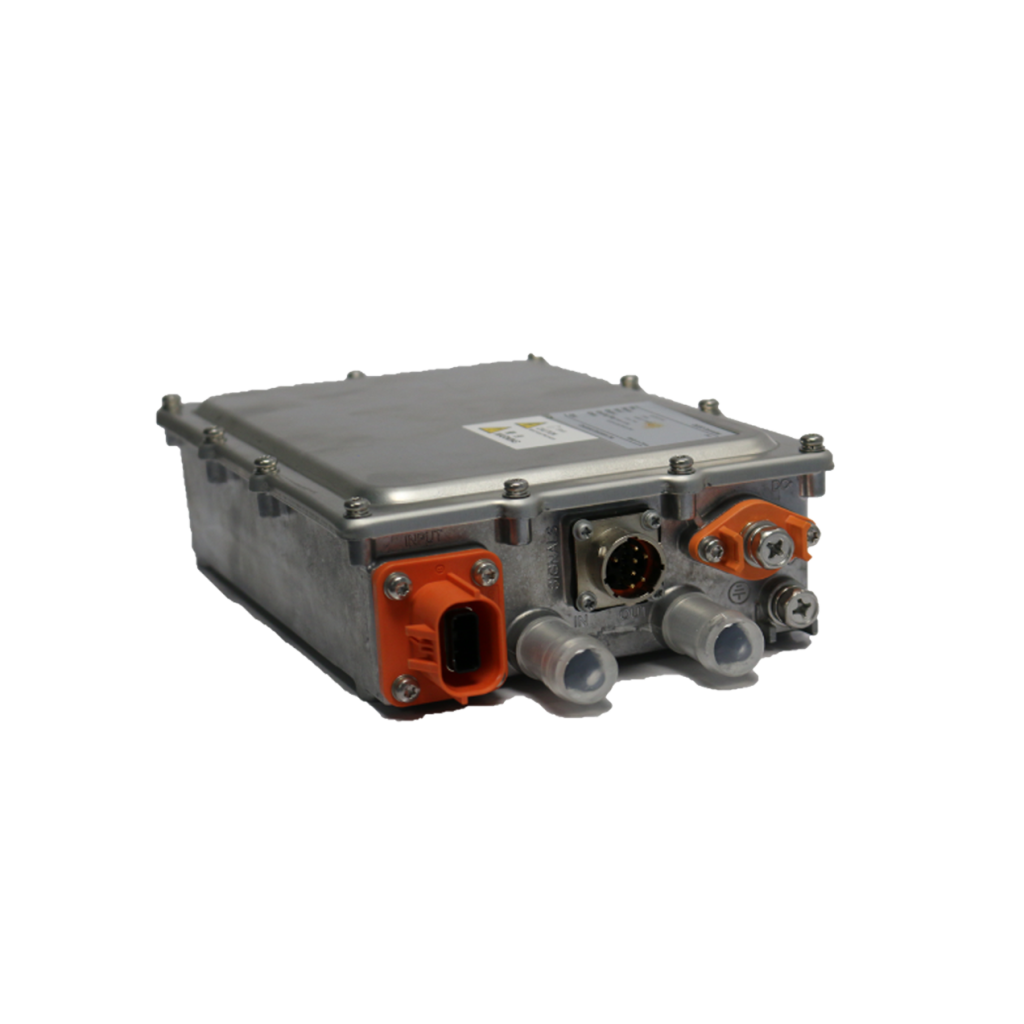

2.5kW Medium Voltage DC-DC Converter (eDCDC2.5MV)
In Stock
This product is not available for online purchase.
Please email us to place an order.
Please email us to place an order.
2.5kW units can be paralleled for higher power
- 2.5kW Cont. Output
- 12V Output Voltage
- Light Weight, Compact Design
- Wide Range DC Input
- CAN Controlled
- Liquid Cooled
- Meets Conventional Truck &
Bus Requirements
Please log in to access technical files.
CSI Terms and Conditions of Sale:
Read Here
Product details
General specs
- Model #: eDCDC2.5MV
- Rated Power: 2.5kW Continuous, 2.8KW Peak output
- Input Voltage Range: 200-450 VDC
- Communication: CAN 2B
- Output Voltage Range: 12-14 VDC
- Output Current: 200 A Cont. 220A Peak 30s
- Cooling: Liquid Cooled Water Glycol
- Coolant Temperature: -30°C ~ +65°C
- Working Ambient Temperature: -40°C ~ +85°C
- Environmental Protection: IP67
- Weight: 8.8 lbs (3.99 kg)
- Dimensions: L: 9.8" × W: 7.0" × H: 2.7" (L: 249mm × W: 178mm × H: 69mm)
