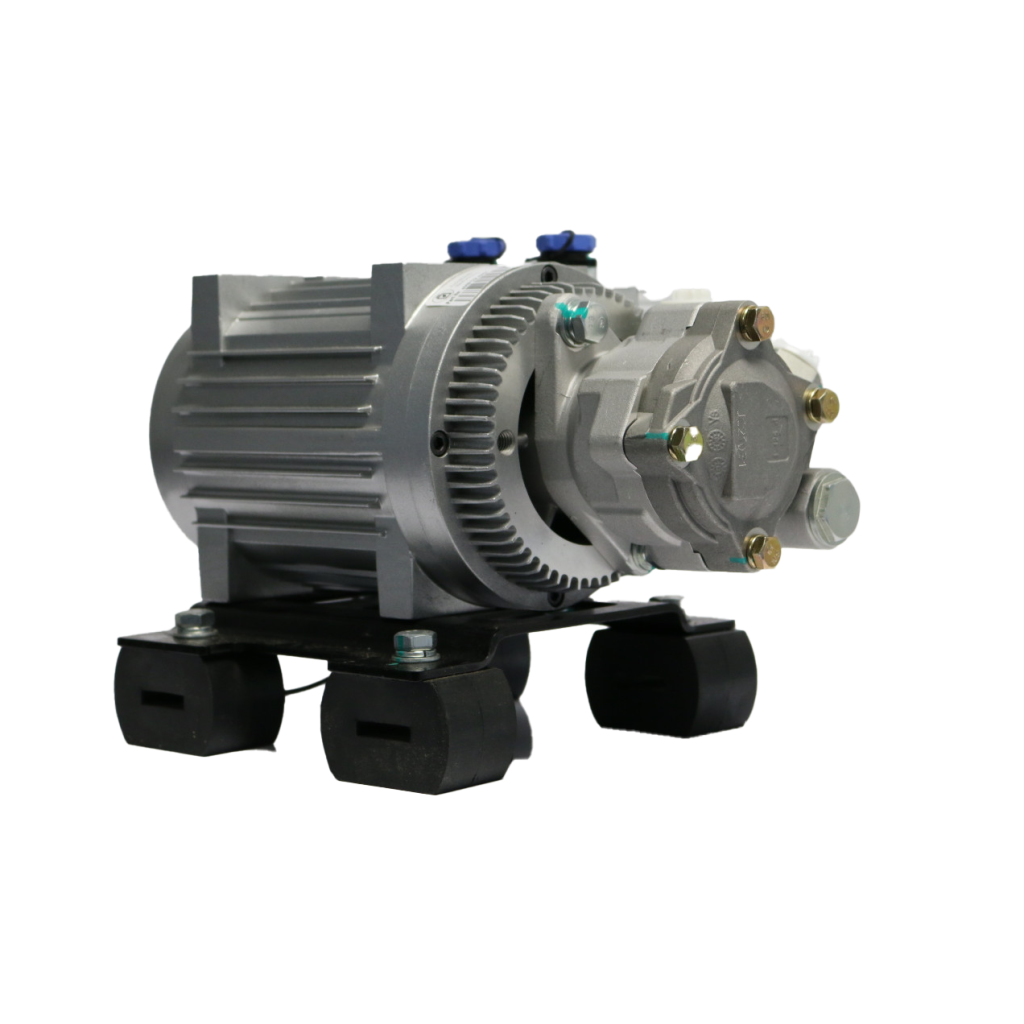

2.4kW Electric Steering Pump (eHPS2.4HV)
In Stock
This product is not available for online purchase.
Please email us to place an order.
Please email us to place an order.
Proven in thousands of commercial EVs and HEVs
- Highly Efficient
- Permanent Magnet Motor
- Pre-Assembled Reservoir
- Light Weight Assembly
- Compact Design
- Very Low Noise
- Meets Conventional Truck & Bus Requirements
- Extremely Low Maintenance
Please log in to access technical files.
CSI Terms and Conditions of Sale:
Read Here
Product details
General specs
- Model #: eHPS2.4HV
- Motor Type: 2.4kW Highly Efficient PM
- Inverter Voltage: 500-750 VDC
- Inverter Control: CAN 2B
- Rated Flow at Pressure: 4.2 gpm@1856psi ([email protected])
- Peak Flow/Pressure: 4.5 gpm/2320 psi (17.0 lpm/16MPa)
- Ambient Temperature: IP67
- Weight: 38.5 lbs (17.46 kg)
- Dimensions: L: 12.3" × W: 8.7" × H: 9.0" (L: 312mm × W: 221mm × H: 229mm)
